Carbon Dioxide Applications Featuring Polar® Hose

TIPCO Technologies and Saint Gobain

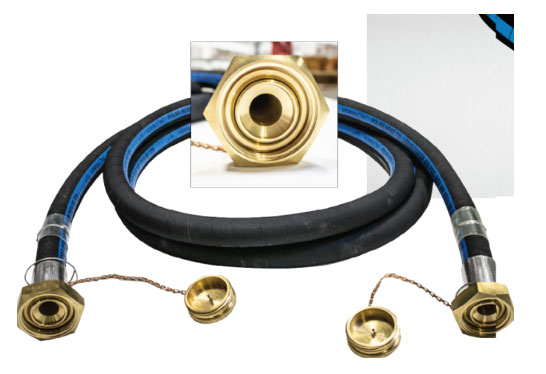

TIPCO Technologies is proud to be the only Master Distributor and sanctioned assembler of CO2 Polar® Hose Assemblies, made from Saint-Gobain’s Versilon™ Polar® Hose and Fittings.

Flexible Components brand Polar® hose overcomes the problems caused by misapplication of rubber hoses used in earlier carbon dioxide (CO2) transfer applications. They tended to crack due to the cold temperatures associated with CO2 transfer and could become stiff, brittle and hard to handle. Metal hose remained flexible in the cold but was much heavier and harder to handle. In addition, corrugations inside metal hose can trap solid CO2 ice, causing plugging of hose, valves and pipes during CO2 transfer.

Specifications & Benefits
  • Specifically designed for bulk CO2 transfer.
  • Uses a specially formulated elastomer that is compatible with CO2 and low temperatures.
  • Strength and durability from stainless steel braids and non-corrosive fittings.
  • Lightweight.
  • Flexible.
  • Strong.
  • Best choice for CO2 bulk liquid transfer.
Hose Comparison
Polar Hose Specifications
Carbon Dioxide Applications – Polar® Hose End Fittings & How to Order

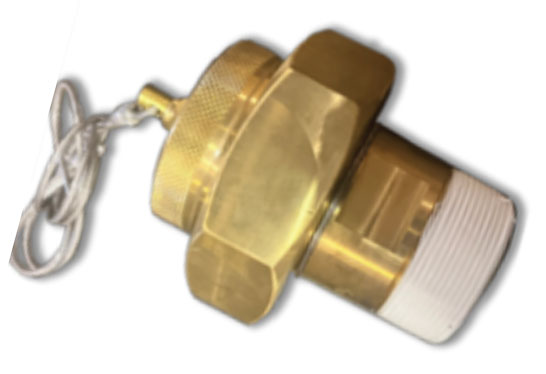

Female NPT – Style 05
Sizes: 1", 1-1/2", 2" Available in: Brass
CGA Connection – Style 77
Sizes: 1", 1-1/2", 2" Available in: Brass

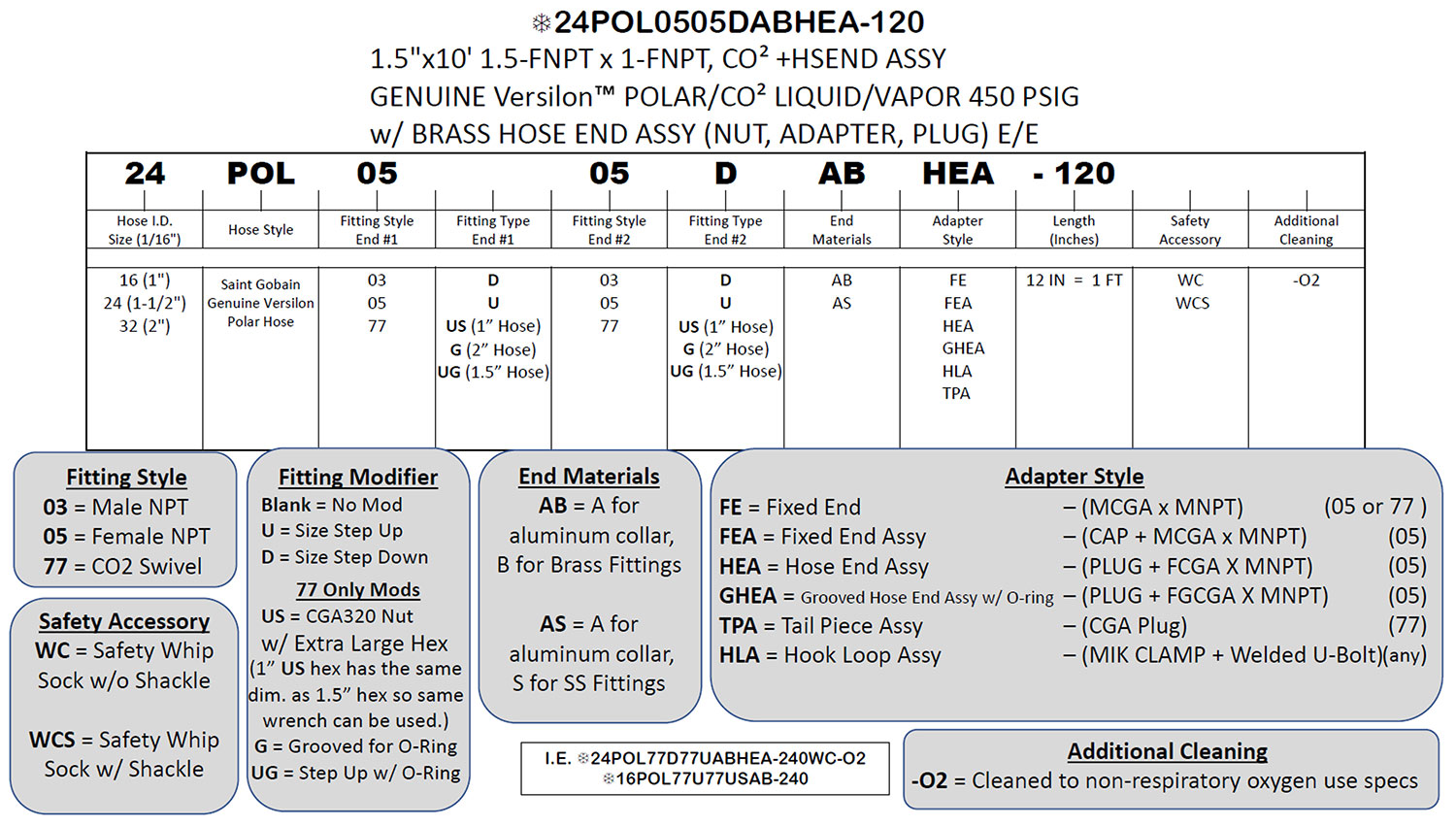

How to Order Polar® Hose

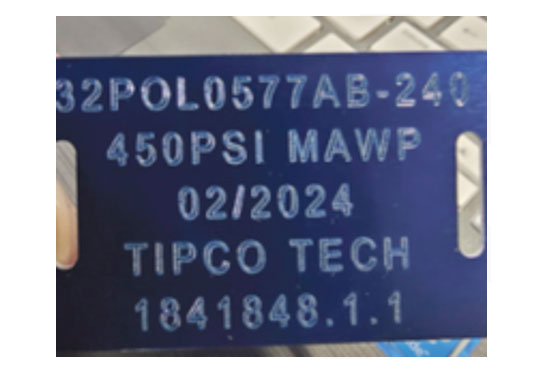

Part Number Example: 16POL0505UAB-240"
Description:
1" I.D. Polar Hose, with 1" brass female NPT one end and 1-1/2" brass female NPT on the other end, 240" overall length.
